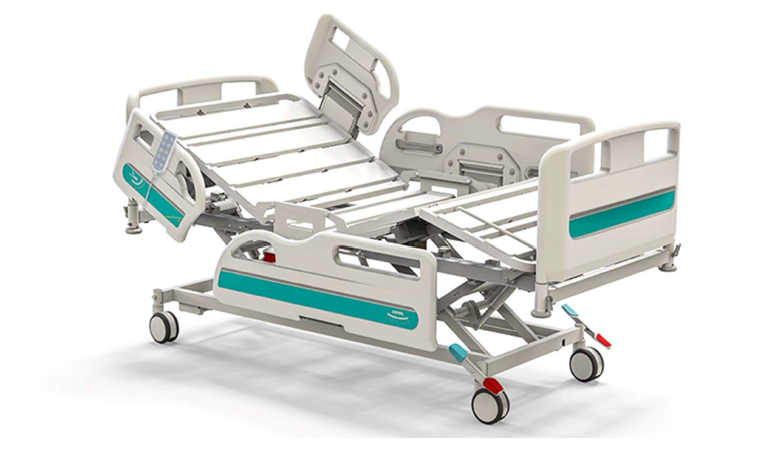

Y8Y SKD-C Electric Bed 5 Functions

Product Description:

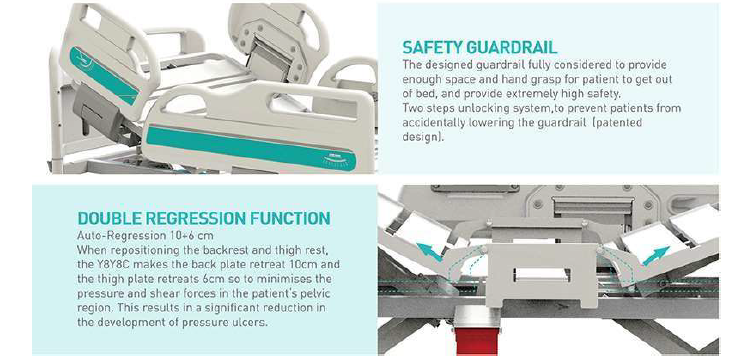

• Double auto-regression function for bed platform

• Super-low bed position 350mm

• PP bed platform, Removable & washable

• Inserted-type PP head foot board, one step quick release with patent safe lock

• PP safety guardrail with two steps unlocking system, patent design

Technical Parameters:

• External Size (LxWxH): 2130x1050x(360-780)mm

•  Mattress Platform: 1925x880mm

•  Safe Working Load: 250kg

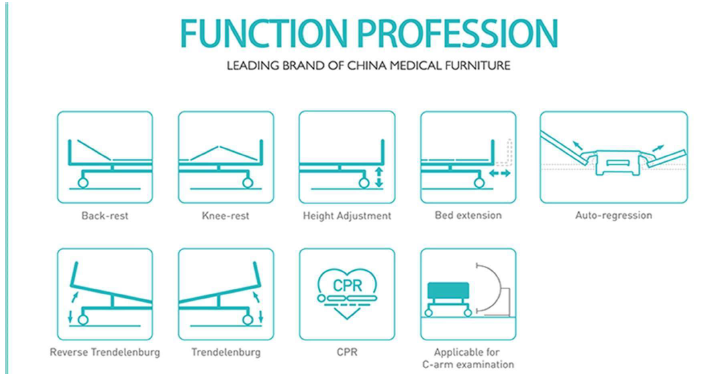

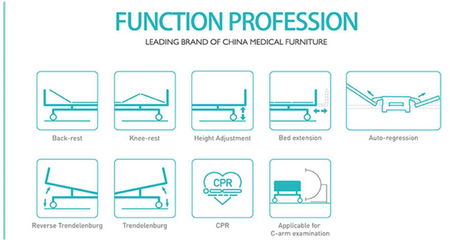

•  Back-rest Adjustment: 0-75°(±10°)

•  Knee-rest Adjustment: 0-35°(±10°)

•  Reverse Trendelenburg: 0-16°

•  Trendelenburg: 0-16°

•  Angle Indicator for back rest and trendelenburg


Technical Configuration:

•  Linear Motor: 4 pcs

•  5" Double Side Castors, Central Locking System: 4 pcs

• ABS Oasis Side Rail Extra Height, with nurse control panel: 1set

• ABS Oasis Bed Ends with Safe Lock: 1 set

• PP Bed Platform, Removable & Washable: 9 pcs

• Plastic Socket Inside PP Guardrail for Phone or

• Glasses: 2 pcs

• Patent Angle Indicator For Back-rest And

• Trendelenburg

• Position: 4 pcs

• φ70mm Wall Bumper Wheel: 4 pcs

• IV Pole: 1set
• IV Pole Prevision: 4 pcs

• Drainage Hook: 2 pcs

• Central Locking Pedal: 2 pcs

• Manual CPR

• ABS Mattress Stopper: 2 pcs

• With hook type nurse control panel at foot end:1 pc

• Hand controller

• Back up battery

• Emergency Stop Button

• Cardiac Chair Position

• Monkey Pole

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
