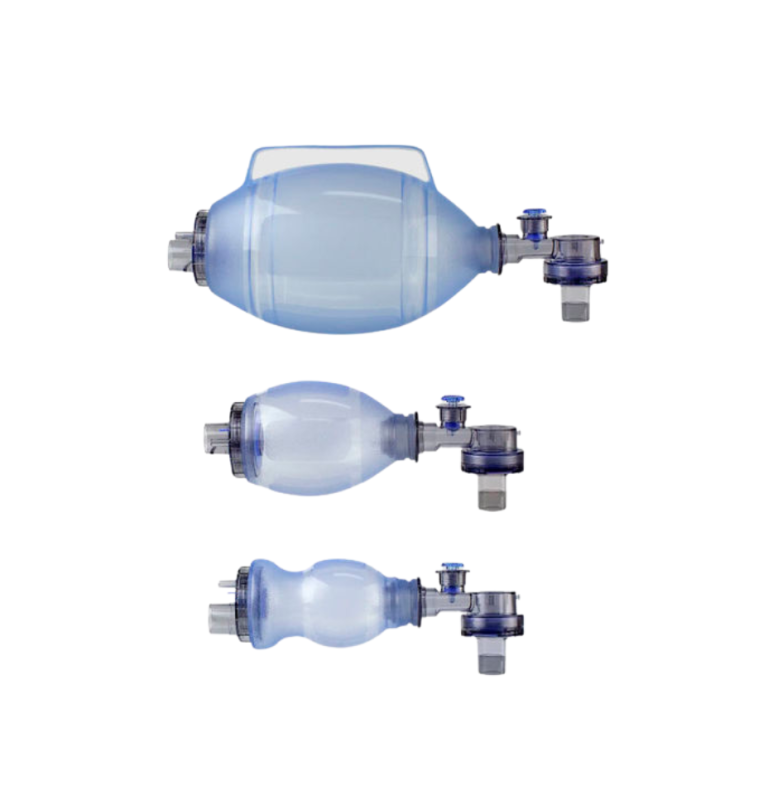

Resuscitator PVC - Infant CP

Specifications:

• Masks: #1
• Body Weight: ≤10kg
• Stroke Volume: ≥20m
• Resuscitator Volume: 280ml ±100ml
• Dimensions (length x Diameter): 135mm x 75mm
• Pressure Limiting Valve: 30cmH20-45cmH20
• Dead Space (patient valve): ≤7ml
• Inspiratory Resistance: ≤5cmH20 (at 50l/min)
• Expiratory Resistance: ≤5cmH20 (at 50l/min)
• Bag Reservoir Volume :1600ml
• Patient connector: ISO5356-1: Ǿ22/15mm
• Recommended Operating Condition -18⁰C ~ +50⁰C, 15%r.h ~95%r.h
• Storage: -40⁰C ~ +60⁰C, 40%r.h~ 95% r.h
• Supplementary Oxygen & delivered Oxygen Concentration (≥85%): Vt: 60ml; Frequency: 20BPM; Flow Rate: 15l/min

 Lead Time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
