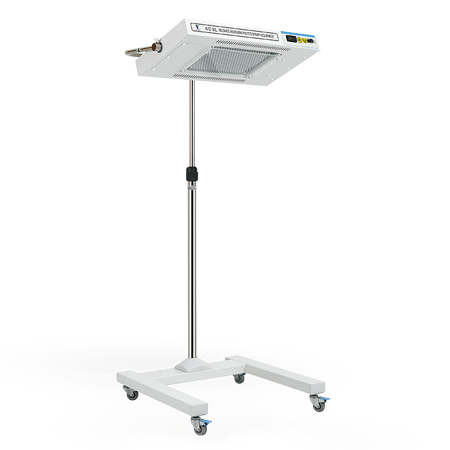

Phototherapy NeoN XHZ-90L

• Mobile and fixed models available (Fixed model is specially mounted on our company's infant incubator);

• Radiate resource: Blue LED;

• Timer to count phototherapy time;

• Angle of lamp module can be adjusted (for mobile model);

• Height of lamp module can be adjusted (for mobile model);

• Wheels can be locked (for mobile model).

Standard Configuration

• Mobile model: The lamp module (including radiant light resource, protective panel and timer), lock knob, and mobile stand (including height adjustment rod, lamp column and stand) and wheels.

• Fixed model: The lamp module (including radiant light resource, protective panel and timer) and lamp column.

Specifications:

• Power requirement:  AC220V-230V/50Hz or AC110-120V/50-60Hz, 75VA
• Light source: Blue LED
• Peak spectrum of radiant light resource: 465nm
• The total spectral irradiance on the effective surface area: ≥56uW/cm2/nm (for mobile XHZ-90L) - ≥26uW/cm2 /nm (for fixed XHZ-90L
• verage value general bilirubin radiation on the effective surface area: ≥38uW/cm2/nm (for mobile XHZ-90L) - ≥20uW/cm2/nm(for fixed XHZ-90L)
• Uniformity of the total irradiance for bilirubin: ＞0.4
• Dominant wavelength of blue light: 420-470nm
• Lifetime of LED: 20000hrs
• Adjustable range for the radiation angle of lamp module: 0-60°up from horizontal (Only for Mobile model)
• Adjustable range for the height of lamp module: 1350mm~1650mm (Only for Mobile model)
• Built-in timer range: 0~99999.9 hrs

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
