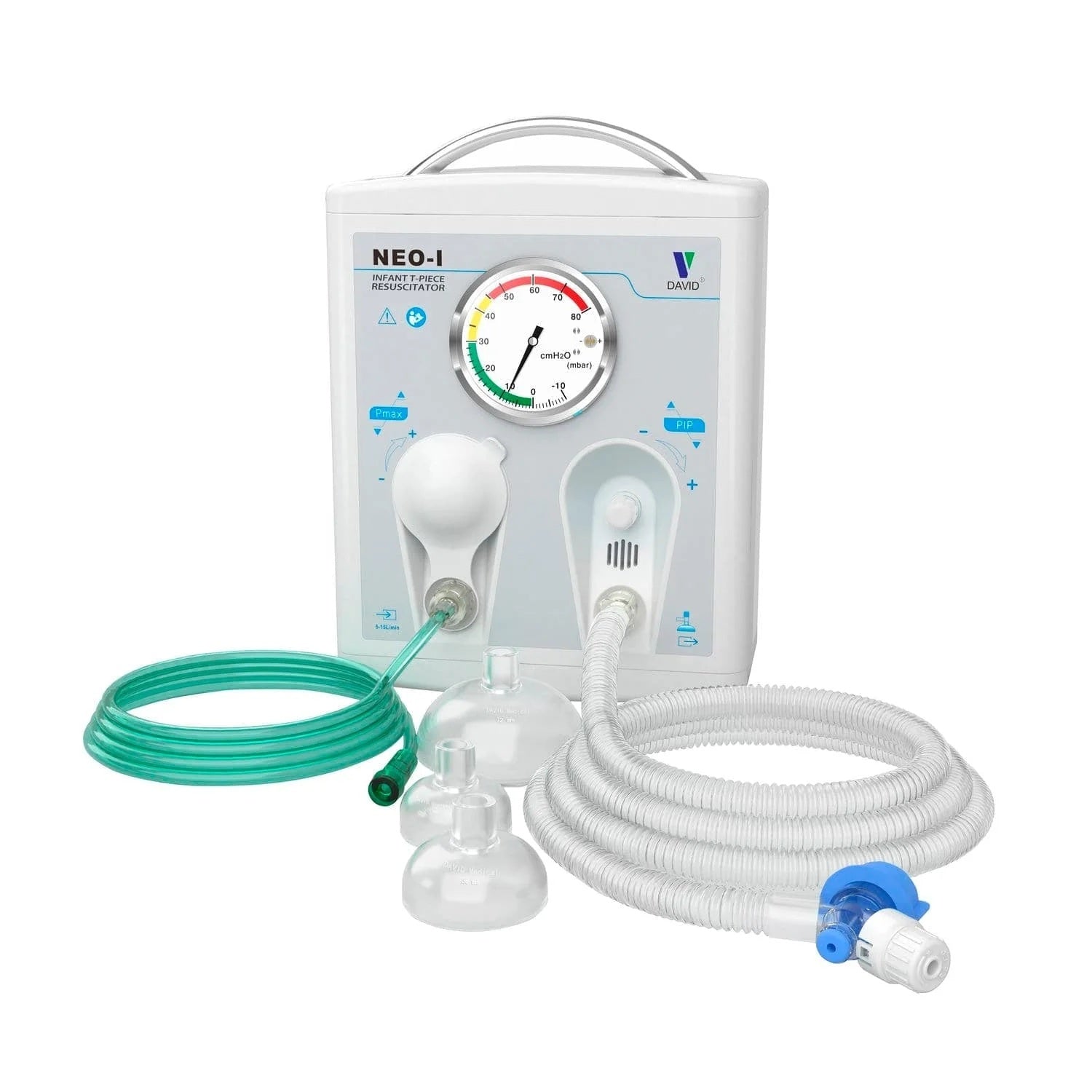

NEO-I Infant Resuscitator

The design is in accordance with ILCOR and AHA’s AAP’ (NRP) lastest resuscitation guidelines;
Provide effective and safe airway management during resuscitation;
Offer a safety, stable and controllable target Peak Inspirato-ry Pressure (PIP) and delivering
consistent Positive end-expiratory Pressure (PEEP) to help establish Functional Residual Capacity (FRC) and improve lung volume;
Manually operated, pneumatic driven for the infant <10kg weight, especially for premature;
Applicable for delivery room, transport NICU and other sections

Environmental Requirement

• Operating range: -18℃~50℃ Relative Humidity:≤93%

• Atmospheric pressure: 700~1060hPa

Specification

• Oxygen concentration level: 21%-100% (According to the oxygen concentration of gas supply )

• Diaphragm manometer range: -10~80cmH2O
• Accuracy: ±2% of FSD

• Input gas flow range: 5-15L/min (require the gas supply can be
  set up at that flow range)

• Maximum pressure (Pmax) setting range: 1-60cmH2O (factory setting of pressure relief valve is 40cmH2O)

• Peak Inspiratory Pressure (PIP) setting range: 5L/min: 1-57cmH2O(mbar)
  8L/min: 2-58cmH2O(mbar) 10L/min: 3-59cmH2O(mbar) 15L/min: 5-60cmH2O(mbar)

• The factory setting of pressure relief valve: 20cmH2O，
  can be adjustable

• Positive End Expiratory Pressure (PEEP) setting range: 5L/min: 0-8cmH2O(mbar)
  8L/min: 0.2-17cmH2O(mbar) 10L/min: 0.5-23cmH2O(mbar) 15L/min: 1-28cmH2O(mbar)

• Applicable time (400L, 50% air/oxygen mixture): 5L/min: 75min
  10L/min: 38min 15L/min: 26min

• Dead space of resuscitator and other accessories: ≤6ml Total mass (including accessories): ≤2kg

Accessories

• Single Use Infant Resuscitation T-Piece Circuits
  T-piece Circuits include a valve that can be controlled to achieve desired PEEP level; Single use;
  Through port to deliver surfactant, and the surfactant will be absorbed. Gas Supply
• Pipe
  The Gas Supply Pipe provides a unique connector to the NEO-I T-piece Infant Resuscitator.
• Silicone mask
  Different size can be offered, the device is designed to guarantee comfort level of an infant's face with a structural seal to reach the purpose of resuscitation.
