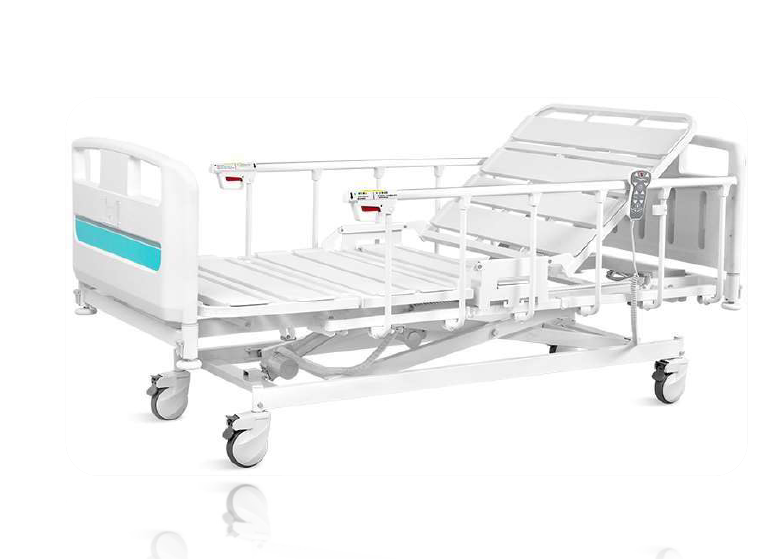

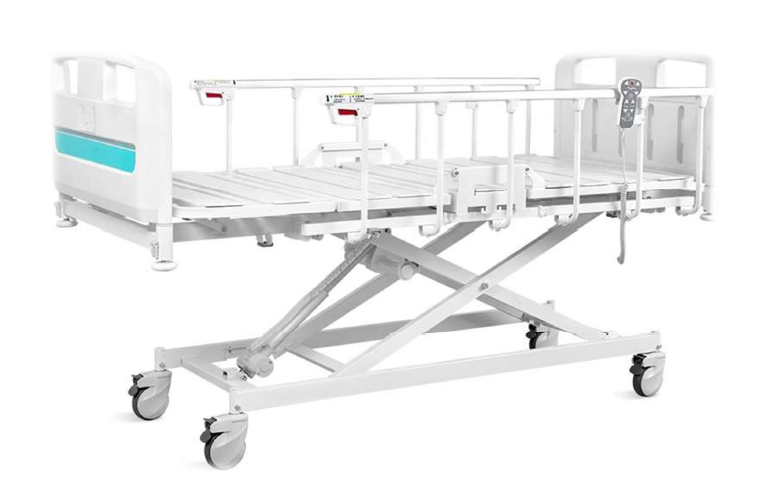

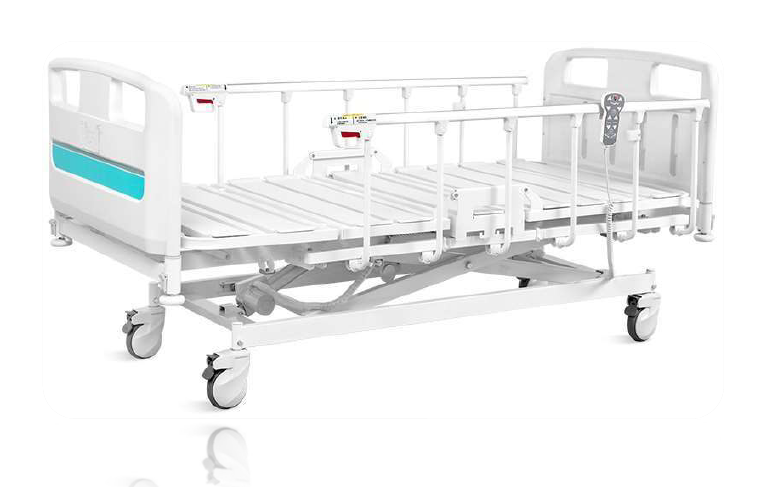

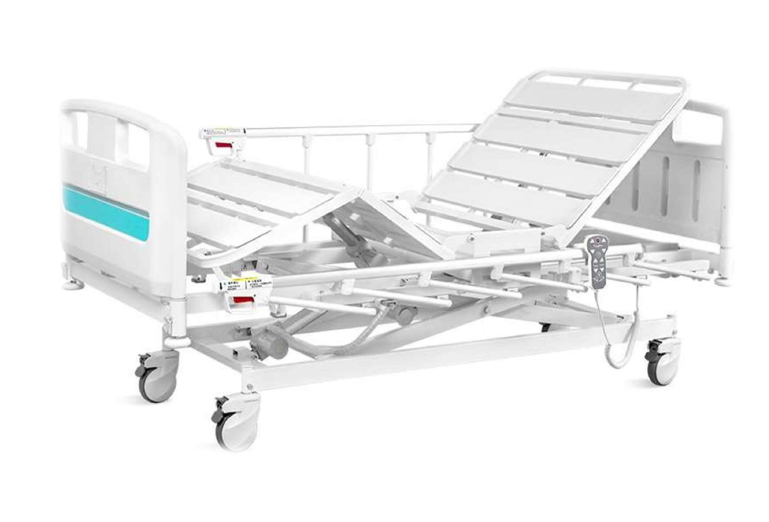

Y6w KD-C Electric Bed 3 Functions

PRODUCT DESCRIPTION:

• KD-C Electric bed three functions

• Double auto-regression function for bed platform Super-low bed position 365mm

• PP bed platform, Removable & washable

• Inserted-type PP head foot board, one step quick release with patent safe lock

• Technical Parameters:

• External Size: (LxWxH): 2130x1015x(365-805)mm

• Mattress Platform: 1925x880mm

• Safe Working Load: 250kg

• Back-rest Adjustment: 0-75°(±10°)

• Knee-rest Adjustment: 0-35°(±10°)

• Technical Configuration:

• Linear Motor: 3pcs

• 5" Covered Castors with Brake: 4pcs

• Foldable Side Rail with Pro-Ergo-Handle™:

• 1 set ABS Oasis Bed Ends with Safe Lock:

• 1 set

• PP Bed Platform,

• Removable &Washable: 9pcs

• Plastic Socket Inside PP Guardrail for

• Phone or Glasses: 2pcs

• Patent Angle Indicator For Back-rest And

• Trendelenburg Position: 4pcs
  φ70mm Wall Bumper Wheel:4pcs

• IV Pole: 1set

• IV Pole Prevision: 4pcs

• Drainage Hook: 2pcs
•  ABS Mattress Stopper: 2pcs

• Bed extension

• Back up battery

• Monkey Pole

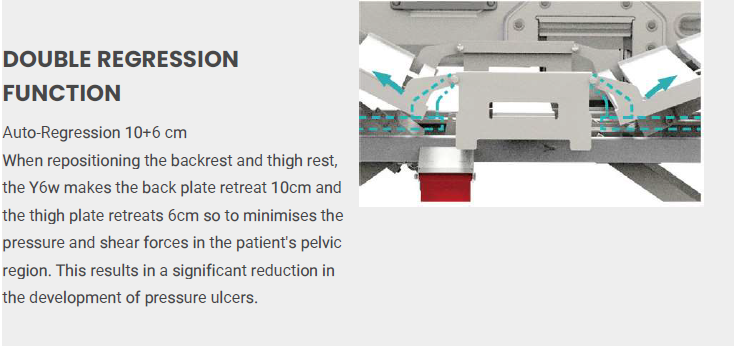

DOUBLE REGRESSION FUNCTION:

Auto-Regression 10+6 cmWhen repositioning the backrest and thigh rest, the Y6w makes the back plate retreat 10cm and the thigh plate retreats 6cm so to minimises the pressure and shear forces in the patient's pelvic region. This results in a significant reduction in the development of pressure ulcers.

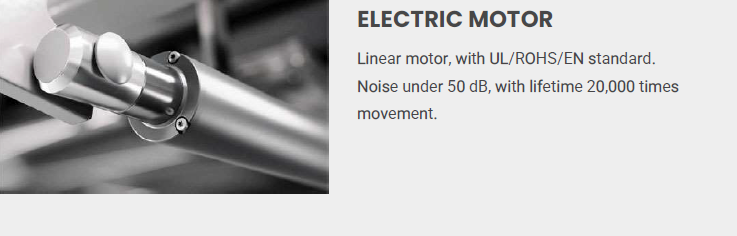

ELECTRIC MOTOR:
Linear motor, with UL/ROHS/EN standard. Noise under 50 dB, with lifetime 20,000 times movement.

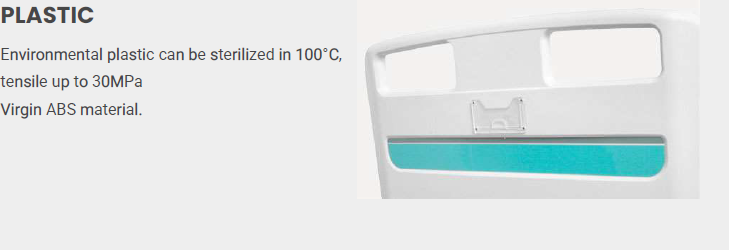

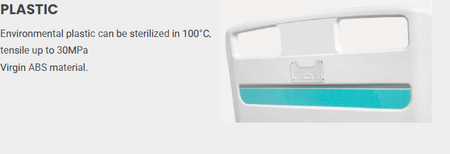

PLASTIC:
Environmental plastic can be sterilized in 100°C, tensile up to 30MPa Virgin ABS material.

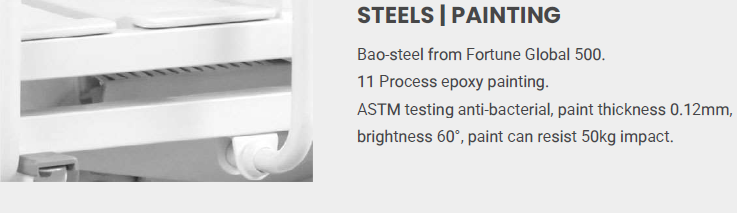

STEELS | PAINTING:
Bao-steel from Fortune Global 500. 11 Process epoxy painting. ASTM testing anti-bacterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact.

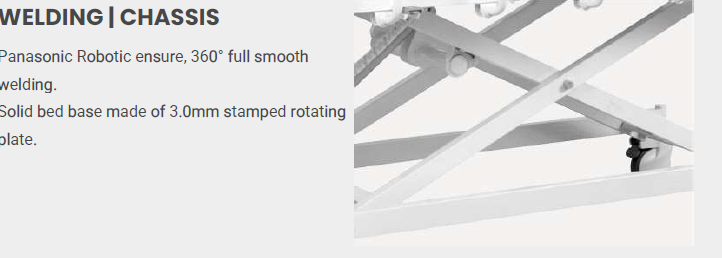

WELDING | CHASSIS:
Panasonic Robotic ensure, 360° full smooth welding. Solid bed base made of 3.0mm stamped rotating plate.

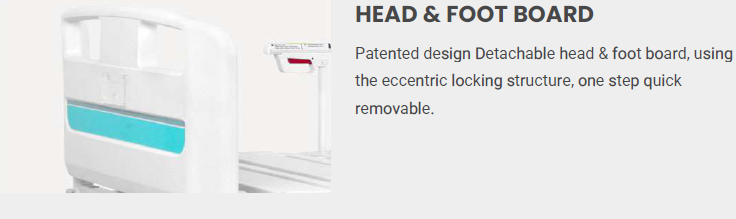

HEAD & FOOT BOARD:
Patented design Detachable head & foot board, using the eccentric locking structure, one step quick removable.

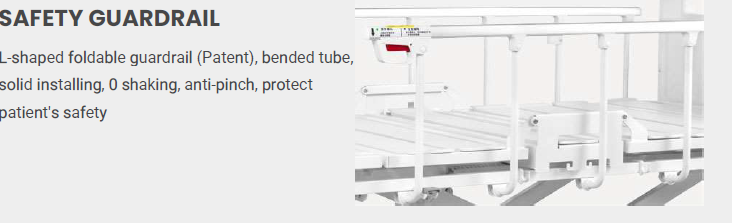

SAFETY GUARDRAIL:
L-shaped foldable guardrail (Patent), bended tube, solid installing, 0 shaking, anti-pinch, protect patient's safety

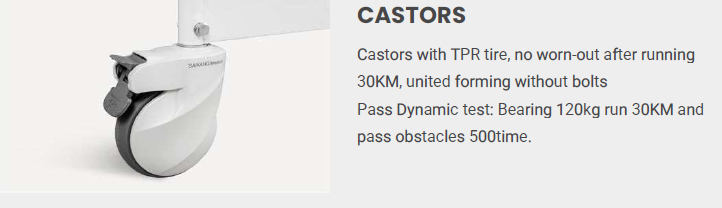

CASTORS:
Castors with TPR tire, no worn-out after running 30KM, united forming without bolts Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time.

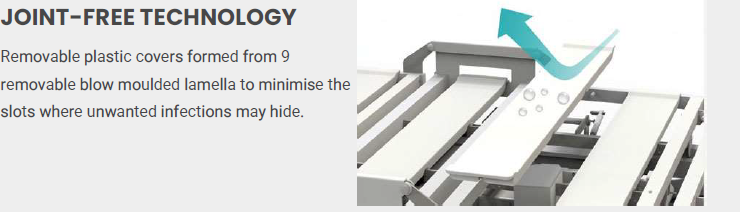

JOINT-FREE TECHNOLOGY:
Removable plastic covers formed from 9 removable blow moulded lamella to minimise the slots where unwanted infections may hide.

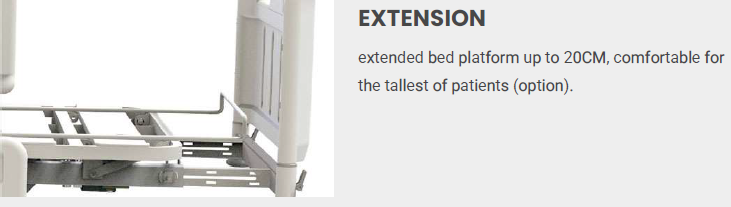

EXTENSION:
extended bed platform up to 20CM, comfortable for the tallest of patients (option).

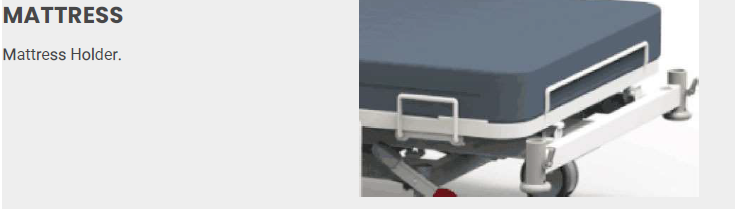

MATTRESS:
Mattress Holder.

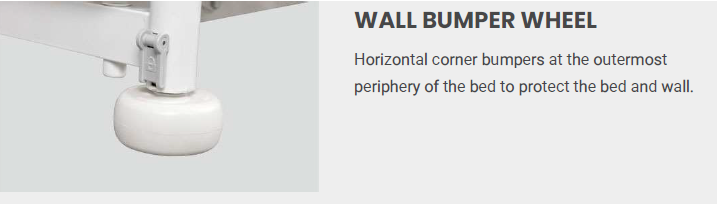

WALL BUMPER WHEEL:
Horizontal corner bumpers at the outermost periphery of the bed to protect the bed and wall.

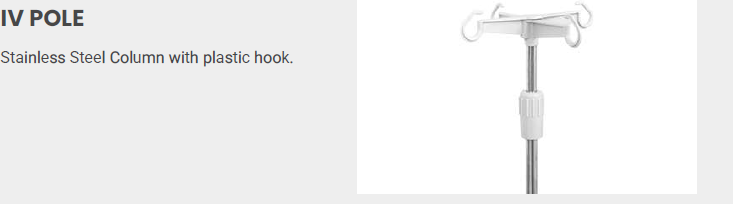

IV POLE:
Stainless Steel Column with plastic hook.

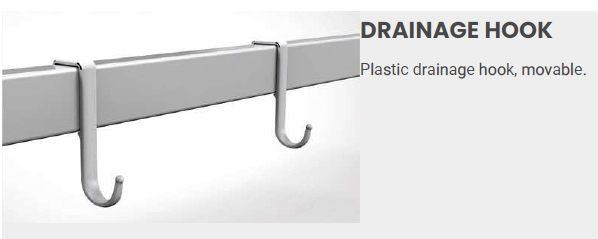

DRAINAGE HOOK:
Plastic drainage hook, movable.
