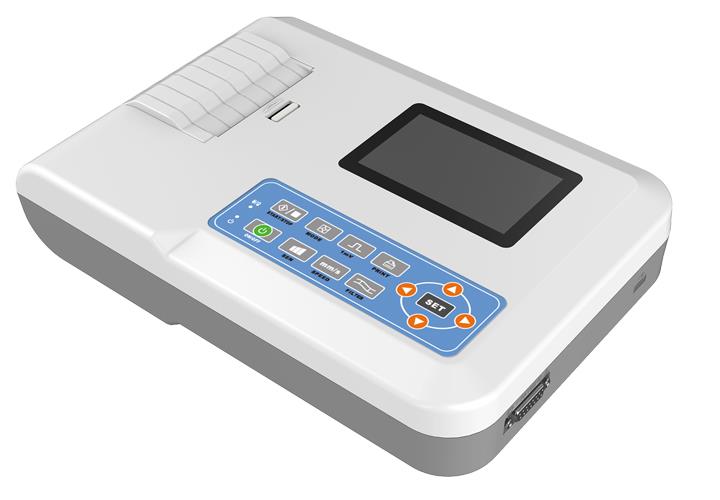

Contec ECG 300G - 3 Channel & Interpretation

SKU: ECG300G/INT
R 12,833.99 inc. VAT
Sale R 15,334.87 R 12,833.99 inc. VAT

Use this text to encourage communication or promote sharing on social networks.

You can also add links

Features:

  • High resolution thermal printing system, high precision
  • 12 leads collection in phase as well as 3 leads printing in phase
  • Digital design and filter, baseline auto-adjustable
  • LCD displays operation menu
  • Power Supply: AC/DC, built-in rechargeable lithium battery
  • Automatic measurement, analysis and diagnosis with high speed
  • Elegant and compact outlook, with inner handhold.
  • Supplied with Disposable electrodes

Specifications:

  • MODEL: ECG 300G
  • ECG Input Circuit: Floating; protection against defibrillator effect.
  • Lead: Standard 12 leads
  • Display: 3.5” TFT screen
  • Patient Current Leakage: 10μA
  • Sampling Rate: 1000Hz
  • A/D conversion: 12 bit
  • Frequency Response: 0.05Hz~150Hz (-3dB + 0.4dB)
  • Time constant: >3.2 seconds
  • CMRR: >60dB >100dB (Add Filter)
  • Enduring polarization voltage: ±500mV
  • Noise Level: <15μVp-p
  • Measurement parameters: EMG Interference Filter - 25Hz/35Hz (-3dB)
  • AC filter: 50Hz/60Hz (20dB)
  • Recording way: Thermal printing system (32spots/mm)
  • Recording paper: 80mm(W) x 20m (L)
  • Sensitivity choice: 5,10,20,40mm/mV, Auto
  • Auto-Record: 25mm/s, 50mm/s
  • Rhythm Record: 25mm/s, 50mm/s
  • Manual record: 5mm/s, 6.25mm/s, 10mm/s, 12.5mm/s, 25mm/s, 50mm/s
  • AC, DC: AC 220V,50Hz(110V,60Hz), DC 7.4V, 3700mAh rechargeable lithium polymer battery
  • Fuse specification: 2pcs Ø 5 x 20mm AC Time lag: T250mA/250V (Power Supply 220V)
  • Product safety Type: Class I, type CF applied part, which has defibrillation – proof applied part
  • Fuse Specification: 2 pcs Ø5 x 20mm AC time lag: T250mA/250V (power supply: 220V)
  • Dimensions: 315mm (L) x 215mm (W) x 77mm (H)
  • Net Weight: 2.25kg



Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARCELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
