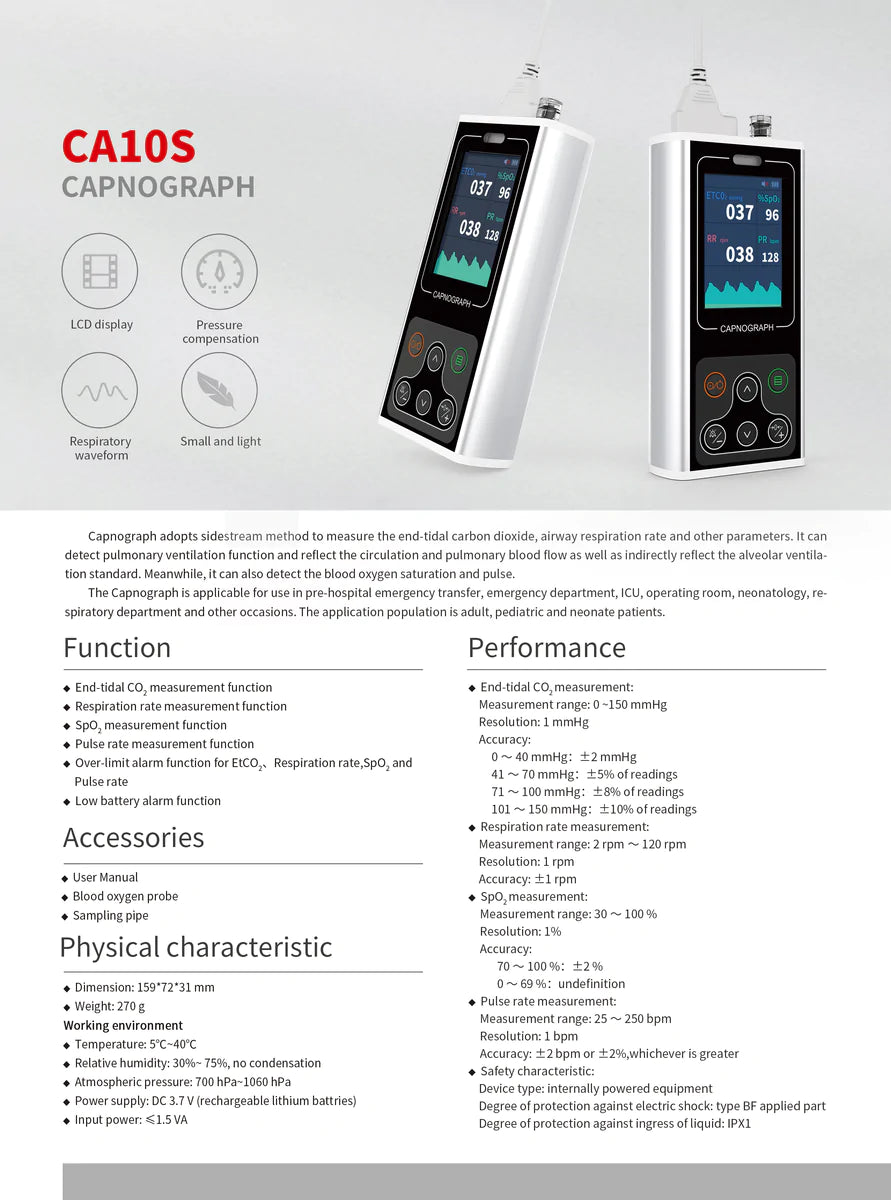

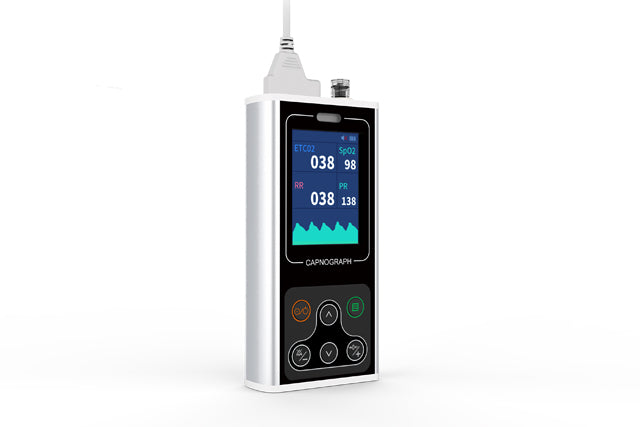

Description:

Capnograph adopts sidestream method to measure the end-tidal carbon dioxide, airway respiration rate and other parameters. It can detect pulmonary ventilation function and reflect the circulation and pulmonary blood flow as well as indirectly reflect the alveolar ventilation standard. Meanwhile, it can also detect the blood oxygen saturation and pulse.

The Capnograph is applicable for use in pre-hospital emergency transfer, emergency department, ICU, operating room, neonatology, respiratory department and other occasions. The application population is adult, paediatric and neonate patients.

Features:

• End-tidal CO2 measurement function
• Respiration rate measurement function
• SpO2 measurement function
• Pulse rate measurement function
• Over-limit alarm function for EtCO2、Respiration rate,SpO2 and Pulse rate
• Low battery alarm function

Performance: End-tidal CO2 measurement:

• Measurement range: 0 ~150mmHg
• Resolution: 1mmHg

Accuracy:

• 0～40 mmHg：±2 mmHg
• 41～70 mmHg：±5% of readings
• 71～100 mmHg：±8% of readings
• 101～150 mmHg：±10% of readings

Respiration rate measurement:

• Measurement range: 2rpm～120rbpm
• Resolution: 1rpm
• Accuracy: ±1rpm

SpO2 measurement:

• Measurement range: 30～100 %
• Resolution: 1%

Accuracy:

• 70～100 %：2 %
• 0～69 %：undefinition

Pulse rate measurement:

• Measurement range: 25～250 bpm
• Resolution: 1bpm
• Accuracy: ±2 bpm or ±2%,whichever is greater

Safety characteristic:

• Device type: internally powered equipment
• Degree of protection against electric shock: type BF applied part
• Degree of protection against ingress of liquid: IPX1

Specifications:

• Dimension: 159*72*31 mm
• Weight: 270 g

Working environment:

• Temperature: 5℃~40℃
• Relative humidity: 30%~ 75%, no condensation
• Atmospheric pressure: 700hPa~1060hPa
• Power supply: DC 3.7V (rechargeable lithium batteries)
• Input power: ≤1.5VA

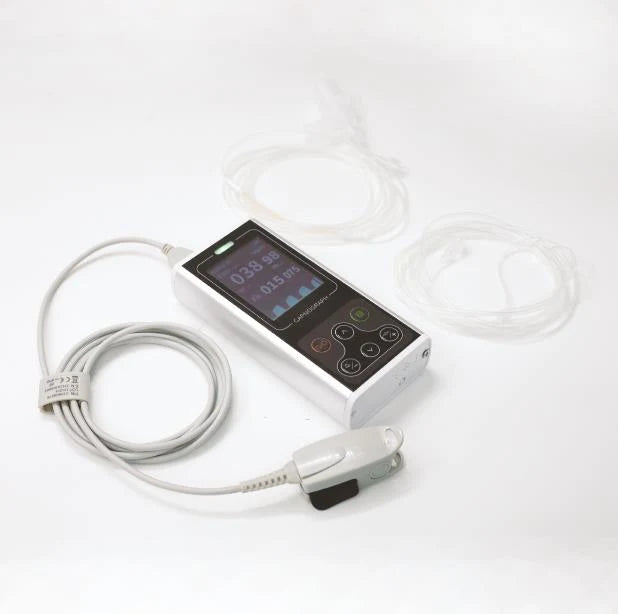

Accessories:

• User Manual
• Blood oxygen probe
• Sampling pipe
• USB wire

Medical equipment with no serial number has limited warranty of 30 Days

Lead time:

Our lead times are 5-7 working days excluding weekends, public holiday’s & shipping time with our courier.

Lead times on out of stock or special-order items 6-8 weeks / 8-10 weeks

PLEASE NOTE DUE TO UNFORSEEN ROAD OR AIR FREIGHT DELAYS PARECELS CAN BE DELAYED BY A FEW DAYS.

*Please note pictures are mainly for illustration purposes, actual product and size may vary slightly*
